ARTIC transit hub Anaheim, has diagrid of steel arches supporting lightweight ETFE pillows

Inspiration for ARTIC transport hub at Anaheim came from grand old US rail stations and from the great hangars used to house blimps post WWII

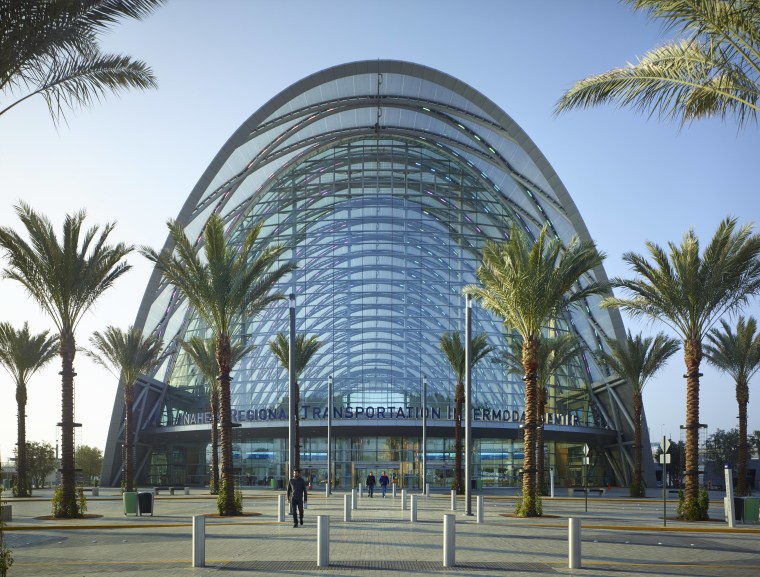

The new ARTIC transit hub in Anaheim is architecture, arecales, building, city, condominium, corporate headquarters, hotel, metropolitan area, mixed use, palm tree, plant, sky, tree, teal
The new ARTIC transit hub in Anaheim is a contemporary interpretation of the grand rail stations of yesteryear. Designed by HOK, the station is a hangar-shaped building clad in translucent ETFE pillows.

In a country where the automobile dominates, local authorities have long recognised that the best way to encourage people to leave the car at home is to provide great public transport alternatives.

But such alternatives require extensive planning, and for Orange County, it is only now that a key initiative has finally come to fruition.

The Anaheim Regional Transportation Intermodal Center (ARTIC) is the new heart of the county's transportation system, providing easy transfer and connectivity between numerous large venues and destinations, including the Angel's Stadium, Disneyland, The Honda Center and the Anaheim Convention Center.

For the team commissioned to design the transit station a collaboration between Parsons Brinkerhoff and HOK the project provided an opportunity to create a new landmark that would announce its presence with a strong architectural statement. HOK design principal Ernest Cirangle says this was precisely what the City of Anaheim required.

"There was an existing station 1000m down the line, but it was very modest, and essentially just two platforms at the side of the tracks," he says.

"The city wanted to replace this with an iconic building that would make a statement about the future of rail and public transport, not just for the city, but for the whole of Southern California and in a way for the entire nation," he says. "The city wanted to be at the forefront of this change, and the new centre needed to energise the move towards a 21st-century rail network."

Cirangle says there were two key historical influences that helped to inspire the design.

"The grand old rail stations in the United States and Europe, including Grand Central and Penn Station in New York were definite influences. So too were the great hangars that were used to house blimps in the post-World War II era. These were simple, long-span structures with great interior spaces. Their appeal lay in their simplicity and their clarity. We envisaged a contemporary version of this form that would not only reference traditional rail stations, but also take advantage of the great natural light in Southern California."


Entry to the ARTIC transit hub in Anaheim architecture, building, daylighting, metropolitan area, structure, urban area, white
Entry to the ARTIC transit hub in Anaheim from the north is via a large public plaza that blurs the line between inside and out. Travellers ascend to the mezzanine level where there are food and beverage outlets, with entry to the rail platforms beyond.

To maximise the light ETFE pillows were specified. These cover more than 18,580m² and are supported by a diagrid of steel arches reaching up to 33.5m.

"The translucent pillows let the natural light flood into the interior," the architect says. "The ETFE is also extremely efficient and lightweight, being 1/100 the weight of glass. The roofing comprises three layers, with each pillow fastened at the edges and inflated by pressurisation in the inner chamber. The shape and form of the pillows provides added stability. It also gives them a quilted pattern that is quite unique."

Cirangle says that during the day the roofing appears quite solid from the exterior, but from the inside it resembles a veil. At night, that reverses and the station appears as a beacon. Computerised LED lighting on the pillows allows the colours to be changed as desired.

The north side of the station is fully glazed, providing transparency for travellers moving between buses and trains.

"Passengers entering from this end arrive at the base of the grand hall, which is almost like being outside. They then ascend to the mezzanine level where there are restaurants and cafes. From there they can move through to a waiting area, on to a bridge over the tracks, and down to the respective platforms. There are multiple tracks and platforms and we chose to have the entry from above, rather than below, so passengers have a clear view of their destination."

Cirangle says that clarity of orientation was a critical factor in the design.

"There is scarcely a need for signage. The flow is intuitive, which was one of the key functional requirements in terms of making the building work. At the same time, we wanted to make it a very enriching, enjoyable experience for travellers."

Not surprisingly, sustainability was also high on the design agenda the project has been designed to meet LEEDS Platinum criteria.

The new ARTIC transport hub in Anaheim features arch, architecture, building, daylighting, facade, fixed link, line, sky, structure, symmetry, teal, gray
The new ARTIC transport hub in Anaheim features steel diagrid supports and diamond-shaped panels, which are comprised of three layers. The inner chamber is pressurised, which creates the pillow effect, noticeable on the outside of the building.

"The entire project comes from a sustainable base, in that it encourages the use of public transportation," says Cirangle. "The efficiency of travelling between cities and venues using rail, buses and shuttles linking at one central depot is a major improvement on previous public transit systems it puts every venue on the doorstep."

The building itself features a mixed-mode natural ventilation system, with a radiant water-cooled floor in all the public spaces.

"Both the shape and height of the building help with the ventilation strategies," says the architect. "Air is drawn into the building at a low level, then rises with the heat to the roof, where it is exhausted through high louvres in the end walls. Because there is cooling at the floor level, the interior maintains a very even temperature."

Solar gain is minimised by the ETFE roofing, which acts as an insulating device. The panels also filter the light so it is not glaring. And the need for artificial lighting is minimised by the amount of natural light entering the building.

Other eco-friendly features include an energy generating photovoltaic array, which is positioned in the south parking lot. Grey water is used for irrigation, toilet flushing and the cooling towers.

Cirangle says the design is the first phase of a major redevelopment of the county's rail system.

"Anaheim is the first station to be built to cater to the proposed California high-speed rail link between Sacramento and Los Angeles. It is essentially a prototype that sets a benchmark for future development."

Credit list

Project
Anaheim Regional Transportation Intermodal Center (ARTIC), Anaheim, CA
Architect
Ernest Cirangle FAIA, Albert Kaneshiro AIA, Kazem Toossi AIA, HOK, Culver City, CA; with Hector Ayala, Edith Bailon, Erika Casillas, Ed Diamante, Jessica Ginther, Carl Johnson, Erik Jones, Stephanie Kotowski, Terry Mattison, Pearl McLin, Barbara Ostroff, Aneirin Owens, Dave Salela, KwangHyun Song, Aida Staugaard, Suren Sumian, Silvia Trigueros, Jamila Valero
Structural engineer
Thornton Tomasetti
Landscape consultant
SWA
Acoustics consultant
Newson Brown
General contractor
Clark Construction Group
Cladding
Metal panels from Woodbridge Glass; Werner Systems; Centria; metal and glass curtain wall by Wausau; Viracon; precast concrete by Structure Cast; other cladding by Kalzip
Windows
Western Integrated Materials, Inc; glass by Viracon
Paints and stains
Sherwin Williams, Scuffmaster, Tnemec steel coating
Elevators and escalators
Tompkins/Mid-American Elevator Co
Client
City of Anaheim
Rail and civil engineer
Parsons Brinckerhoff
Enclosure and MEP engineer
BuroHappold Engineering
Lighting consultant
HLB
Construction manager
STV
Structural steel
Beck Steel
Roofing
Sarnafil; Kalzip; ETFE manufactured and installed by Vector Foiltec
Doors
Stanley; Security Metal Products Corp; VT Industries; Hufcor; The Cookson Co; Raynor
Flooring
Terroxy epoxy terrazzo

Story by: Colleen Hawkes

30 Apr, 2015
