A beacon on the landscape

Thoughtful design strategies create a culture-rich, courtyard home that's both private & transparent, addressing constraints on all sides

Designed by Mark McLeay, Creative Arch

From the architects:

This split-level courtyard house is the innovative response to a site constrained on all sides.

Thoughtful design strategies create a home that is both private and transparent; solid and grounded, yet light-filled and airy.

To protect privacy and embrace views, this house steps down its site and wraps around a central courtyard.

On this Hillsborough hill, four adjacent sites are owned by different family members.

This home is bordered to the north by its owner’s parents, and to the west by her siblings.

To the east are incredible views of the Manukau Harbour but with strong prevailing winds, and to the south, a large neighbouring property.

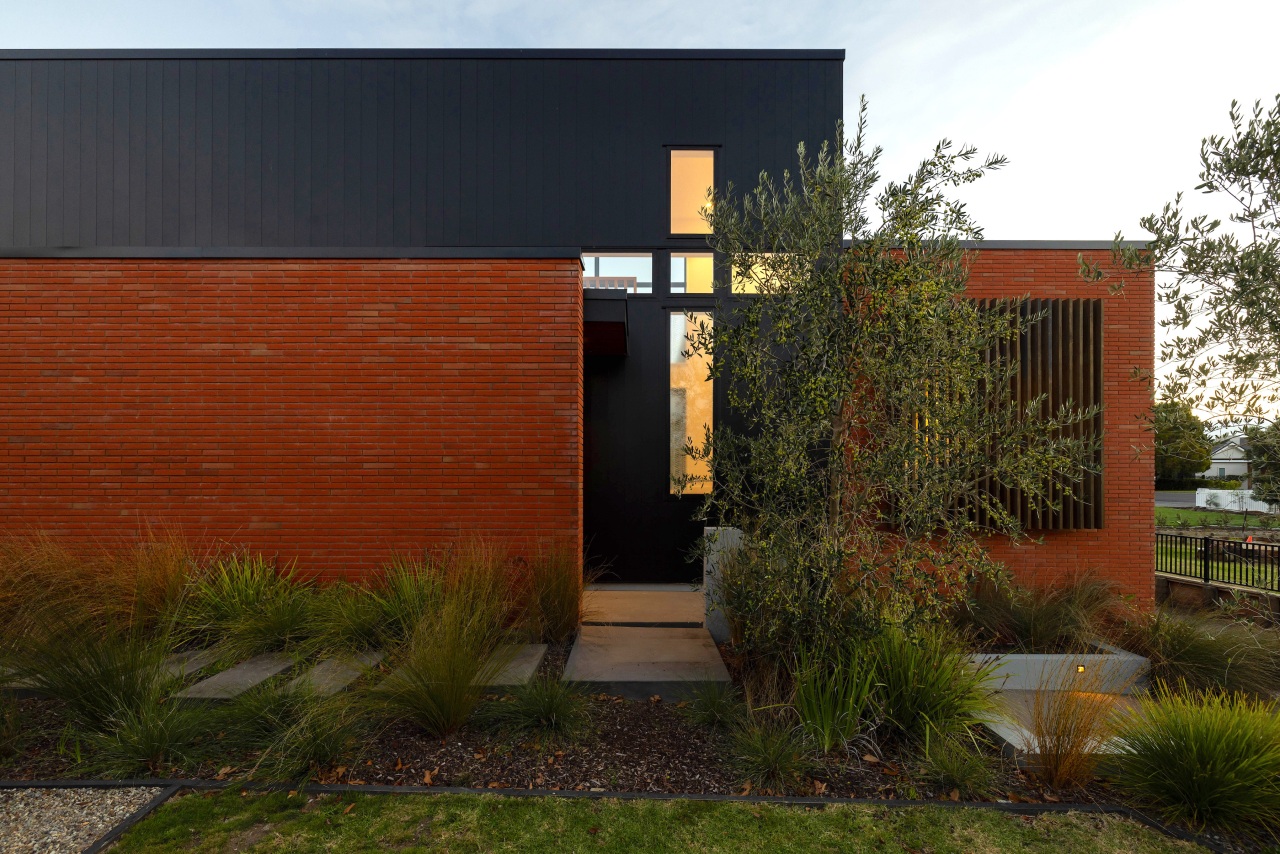

Black NuWall and brick cladding create strong, striking forms stepping down, wrapping around a central courtyard, protecting it from the elements and sheltering it from neighbours.

Entering the home at the centre of the layout, the interior is revealed suddenly, and the eye is drawn over the sunken lounge to the ocean framed beyond.

Reaching into the sunken lounge, brick cladding connects solid exterior forms to the transparent, light-filled interior.

Full height joinery opens to the inner courtyard, where Japanese-style plantings create a peaceful haven.

Above, the split level creates a cosy, separate lounge space and bedroom, and the upper level’s two bedrooms and shared ensuite are a celebration of natural light and sweeping views.

Stepping into this home is a transition from the sheltering forms of the exterior into open plan spaces filled with natural light and a sense of transparency.

At the threshold, a moment of welcome is marked by tapa cloth reaching into the void above.

Inspired by Lonnie Hutchinson’s Honoa ki te Hono Tawhiti series, laser-cut plywood panels display patterns representing the family’s Māori and Samoan ancestry.

Speaking specifically to warmth and hospitality, passing the threshold markers is entry to the inner sanctuary.

The panels act as a cloak, concealing and wrapping around storage with a built-in seat.

Entering the home, the sunken lounge is a grounding point for the kitchen, dining and courtyard spaces.

Stepping the seating down defines a cosy space to enjoy panoramic views of the Manukau Harbour, without compromising the open plan.

Custom made seating has built in storage and shelving, and a protective powder-coated metal top plate.

Need for privacy to the north meant maximisation of solar gain wasn’t possible, so materiality and positioning of windows became key to passive design strategies.

High thermal mass concrete floors contribute warmth, while the void space and paired windows draw in natural light, creating both ventilation pathways and unobstructed sightlines.

The double height void in the entry draws natural light in while maintaining privacy while the crossed window evokes a sense of ambiguity, hinting that this is a sacred space.

At night, lit up from within, the window glows on the hill, a beacon within the surrounding landscape.

Credit list

Cladding
Nu-Wall Profiled Metal Cladding and brick veneer cladding.
Kitchen designer
Creative Arch
Benchtops/splashback
Caesarstone Sleek Concrete; island – Caesarstone Jet Black
Interior design
Creative Arch
Window/door joinery
APL
Bathroom floor tiles
Svenska Ett matt in Muti and Affogato, matt, in Dark Grey, both supplied by Tile Space
Paint, general
Resene SpaceCoat Low Sheen in Black white
Feature lighting
Lighitng supplied by Superlux
Awards
Trends International Design Awards (TIDA) Homes – Runner Up
Builder
QPC Construction
Roof
Metalcraft Profiled Roofing
Cabinetry
PlyTech Birch Décor Oak, lacquered; Melteca Black Pearl
Appliances
Fisher & Paykel
Louvre system
LouvreTec
Main flooring
Natural polished concrete floor; Cable Bay carpet in Stone, supplied by Feltex and Studio Flaster pre-finished engineered timber flooring in Dusk Double White Oak, supplied by Jacobsens
Wallcovering
Ply feature walls: 9mm AD panel with clearcoat finish, in Radiata Decorative, supplied by PlyTech
Fireplace
Escea gas fireplace
Living area furniture
Built in seating and storage in lounge designed by Creative Arch
Photographer
Jono Parker

Helpful links

Windows and Doors
Cabinetry Hardware
Home Builder
Roofing
Heating
Taps
Kitchen Design
Home Design

Story by: Trendsideas
