top of the world

Share Tweet Help

It may not be a highly visible part of Eden Park, but access to the roof is made easier with equipment from Monkey Toe Systems

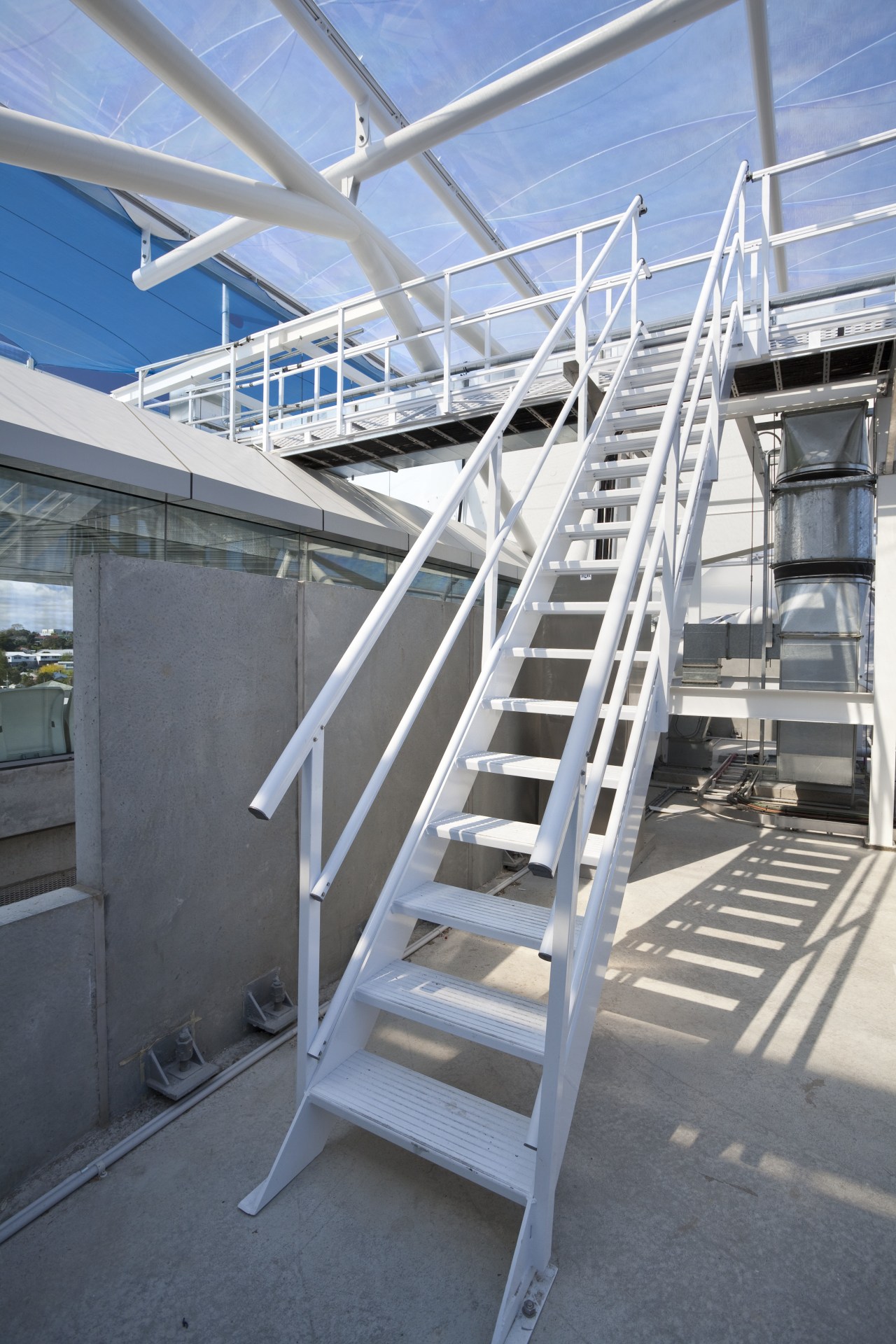

View of the roof of the south stand stairs, steel, structure, gray
View of the roof of the south stand which features personnel access to lighting cables.
View of the roof of the south stand stairs, steel, structure, gray
View of the roof of the south stand cloud, roof, sea, sky, water, white
View of the roof of the south stand architecture, cloud, daytime, fixed link, horizon, road, sea, sky, water, blue
View of the roof of the south stand architecture, cloud, fixed link, reflection, roof, sky, structure, water, gray, blue
View of the roof of the south stand cloud, coastal and oceanic landforms, daylighting, daytime, fixed link, horizon, line, ocean, pier, roof, sea, sky, vacation, water, gray, blue
View of the roof of the south stand building, deck, fixed link, sky, skyway, water, gray

As a large and largely unseen expanse, a roof is often the best place for the hundreds of lighting cables needed by a building the size of Eden Park. The completion of the construction stages doesn't signal the end of foot traffic on the roof, however. Once the building is operational, service personnel still need to access equipment safely and without damaging either cables or the roof.

Monkey Toe Systems secured the contract to supply and install the roof access and lighting cables support system for the South Stand, handling all the design and engineering for the entire package. The roof access had to be cost effective, comply with or exceed health and safety requirements, and double as a support system for the hundreds of lighting cables running over the roof. This included 200 lighting cables weighing 48kg per metre. The roof walkways were designed in two parts, with supports for the cable trays and cables installed first and then overlaid with Monkey Toe walkways. Checker plates on top of the walkway protect the cables from UV rays. Two access stairs and bridges, spanning 6m, were designed and installed in the core of the building to connect the roof access system to the lower levels. The versatile Monkey Toe system allows it to be adapted to incorporate handrails and supports for equipment and services. The Monkey Toe Systems design team is committed to providing solutions for all access or mounting challenges and specialises in custom design and build providing high-quality, robust and reliable systems for building projects throughout New Zealand.


View of the roof of the south stand cloud, roof, sea, sky, water, white
View of the roof of the south stand which features personnel access to lighting cables.

MONKEY TOE SYSTEMS

Phone (06) 272 8708 Fax (06) 272 8755www.monkeytoesystems.co.nz sales@monkeytoe.co.nz

Story by: Trendsideas

22 Nov, 2010
