Leading light

Installing and configuring the building's co-generation plant was central to a Six Star Green Star rating and was undertaken by Q Electrical

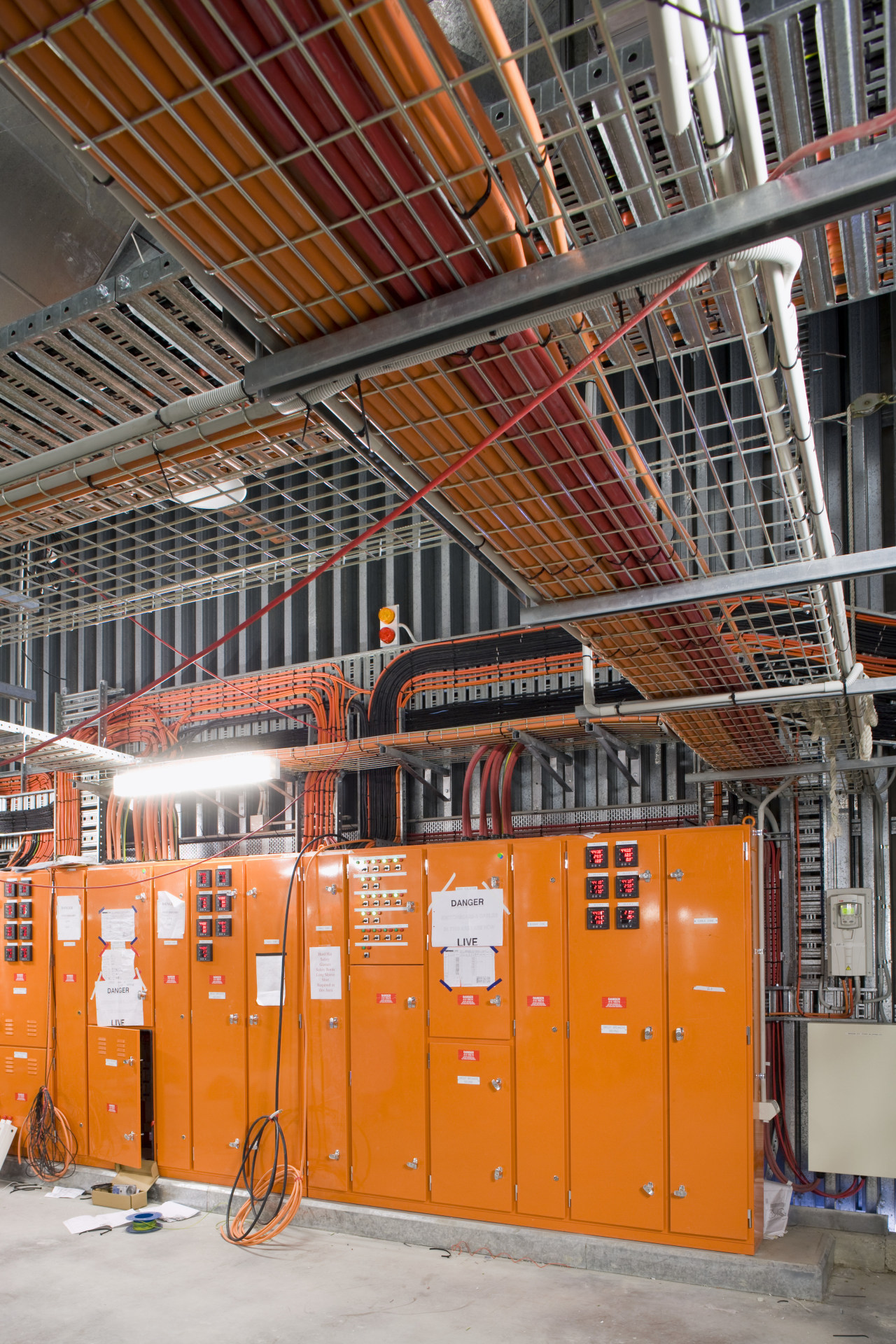

Image of the control panels of the co-generation factory, industry, warehouse, gray — Image of the control panels of the co-generation plant in the North Tower which monitors electrical flow, they regulate all electricity power flow either bringing electricity into the plant when required or regulating electricity created in house.

Image of the control panels of the co-generation orange

Image of the control panels of the co-generation car, orange, wood, orange

Image of the control panels of the co-generation architecture, yellow, orange

View of the co-generation power system which was electrical wiring, black, gray

View of the co-generation power system which was engineering, industry, machine, manufacturing, pumping station, gray

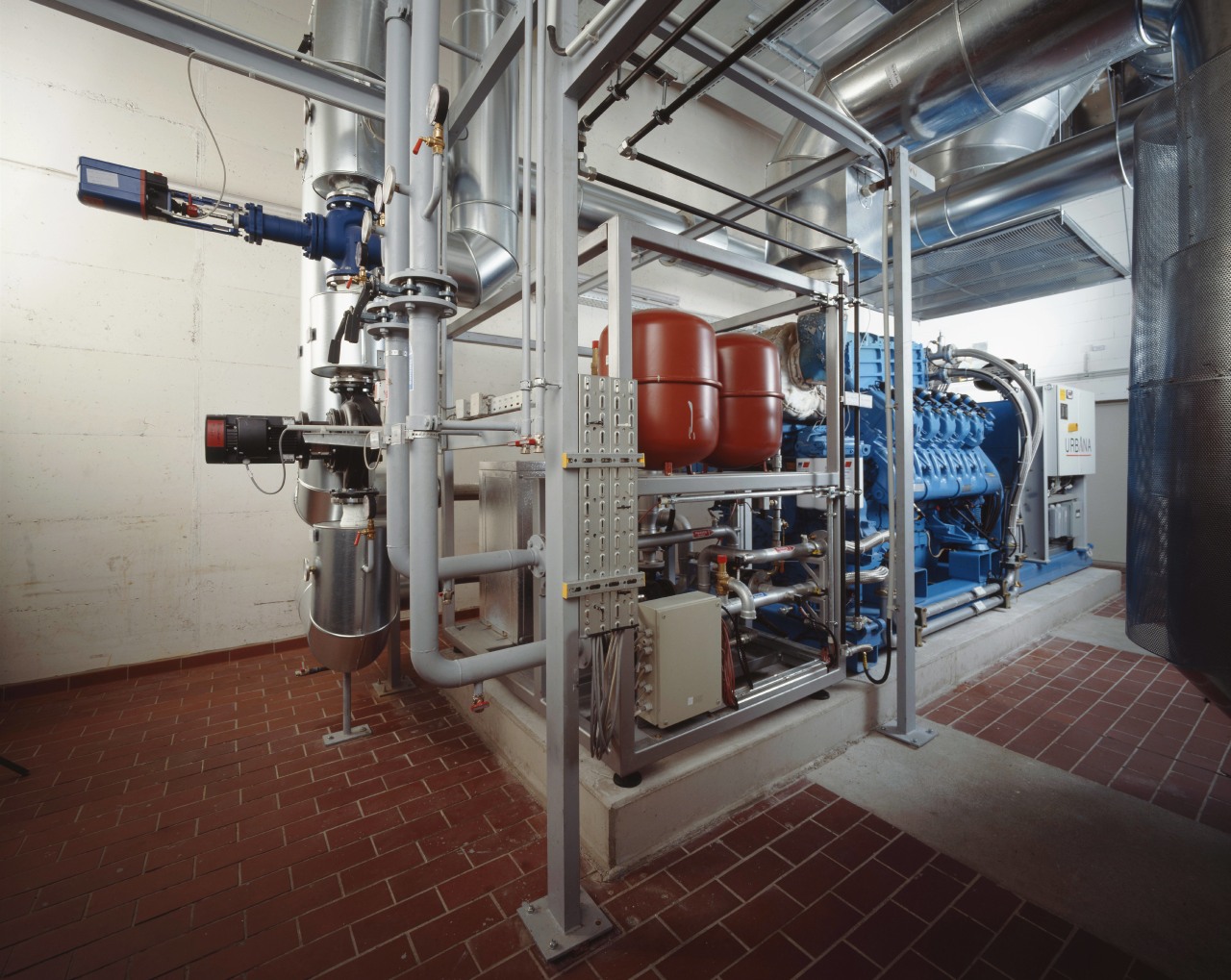

View of the co-generation power system which was factory, industry, machine, gray, red

View of the co-generation power system which was industry, pumping station, gray

View of the co-generation power system which was auto part, engine, engineering, factory, industry, machine, black

Right at the heart of the North Tower's high Green Star rating is the high-tech co-generation plant. The system being new to the Australian market, the company that installed it also had to configure its interaction with adjacent aspects of the energy-efficient system.

Q Electrical Services installed the electrical power and lighting services at the Green Square precinct, including the North Tower's co-generation system.

Co-generation replaces traditional electric power with a purpose-built energy module located in the building. The module uses natural gas to drive an electricity generator, with the generator's excess heat then used to power the building's air conditioning system.

The amount of energy converted into useful power in a co-generation system is in excess of 80%, compared to the less effective 35% energy efficiency seen in coal-fired power generation.

At Green Square, Q Electrical Services used a natural gas generator set supplied by MTU Detroit Diesel Australia. The system installed uses a high-speed fibre optic communications link to transfer data levels, so that correct switching takes place between all controlling devices. This included communications to the absorption chillers and overall building management system.

At a start signal from the building air conditioning control, the MTU generator set commences supply of 770kW of electric power. The generator set synchronises with the mains power supply so any excess load can be managed by the grid. The controls ensure that no power is exported from the building.

The generator set will also supply emergency power in the event of a mains failure to the building.

For more information, contact Q Electrical Services, phone (07) 3391 0688. Email: ghutley@qelectrical.com.au, or visit the website: www.qelectrical.com.au.
