Mixed-use commercial development in Christchurch with retail, offices, large cafe courtyard

100 Moorhouse Ave commercial building constructed by Calder Stewart features cafe courtyard with overhead louvres, Corten steel
Calder Stewart was the main contractor for this building, car dealership, corporate headquarters, mixed use, property, real estate, gray

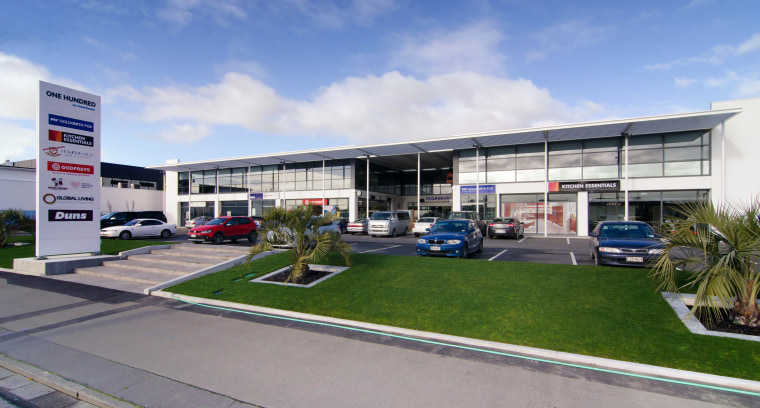

Calder Stewart was the main contractor for this new Christchurch commercial building, 100 Moorhouse Ave.

Christchurch has become a city defined by progress, as new buildings take shape and open for business along many of the city's thoroughfares.

The latest development in a raft of new building projects constructed by Calder Stewart is 100 Moorhouse Ave, which was developed by owner Peter Kelly and designed by Tim Dagg of Sheppard & Rout Architects. Adrian Mathieson, Calder Stewart regional manager, says the company has already completed four buildings at 70-76 Moorhouse Ave for the same developer.

"Building in the post-earthquake environment is always challenging," he says. "The ground conditions, in particular, pose potential hazards. For this mixed-use commercial building, the foundation was based on a concrete beam grid system, rather than the traditional raft slab, to provide more stability."


There are adjustable louvres over this central courtyard glass, gray, black
There are adjustable louvres over this central courtyard at 100 Moorhouse Avenue, Christchurch

The building itself was constructed using a combination of precast concrete shear walls, concrete gravity frames for the lower level and structural steel portal framing for the upper level. Key design features include a central cafe courtyard between the two wings. This has adjustable overhead louvres that shelter the outdoor seating area.

There is also a canopy of louvres along the entire north-facing glazed front facade. These are fixed at an angle that provides shade to the offices, while still allowing plenty of natural light inside, thus reducing the load on the air conditioning systems.

The building features Corten steel on the rear walls, which present a more robust face to the rail corridor.

Corten steel facade on mixed use commercial development architecture, building, commercial building, corporate headquarters, daylighting, elevation, facade, line, orange, real estate, roof, sky, structure, window, white, red
Corten steel facade on mixed use commercial development at 100 Moorhouse Avenue, Christchurch

A quality interior fit-out reflects the developer's commitment to good design. Mathieson says Calder Stewart co-ordinated the integration of all the tenancy fit-outs with the base build.

For details, contact Calder Stewart Industries, PO Box 8356, Christchurch 8041, phone (03) 338 0013. Email: contactus@calderstewart.co.nz.Website: www.calderstewart.co.nz.
