Company : George Taylor Ltd SPECIALTY : Automatic Entry Systems

View of doorway. architecture, door, glass, house, real estate, window, gray, white
View of doorway.

One of the underlying considerations during the design and construction of Kimi Ora School was to achieve a Green Star-rated building and thermal insulation is a key factor.

The lobby of Kimi Ora School has the capacity to act as a wind tunnel, requiring a specialised door solution, says George Taylor, director of George Taylor Limited.

"To provide enhanced thermal and sound insulation, the outer door set comprises toughened glass panels within a double glazing profile (LR.22) by Tormax of Switzerland. The LR.22 system incorporates an overlapping weather seal system for draught elimination.

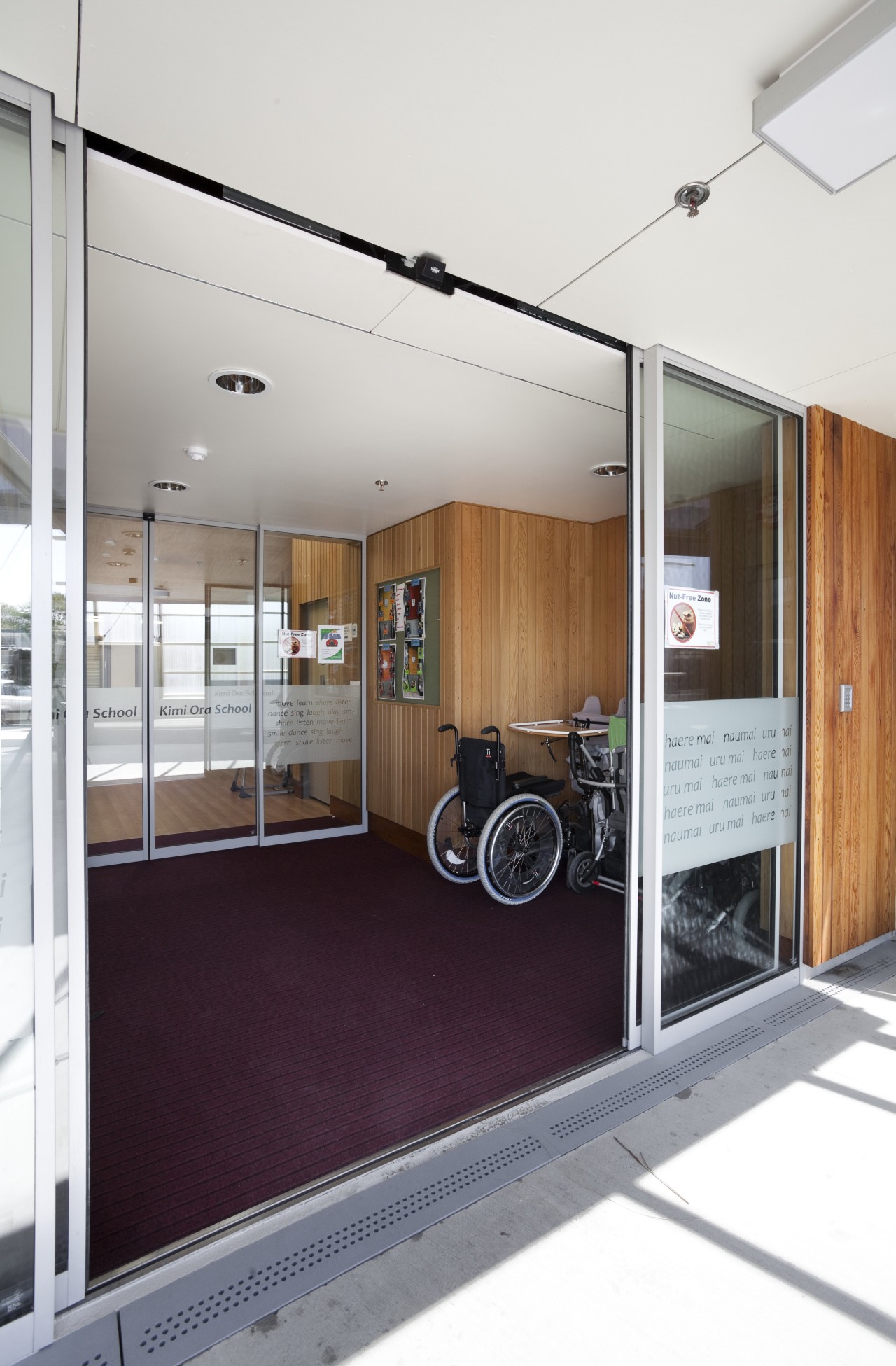

View of entry to school. door, floor, white
View of entry to school.

"The inner door set is also made from toughened glass, which provides increased rigidity. These single glazed door panels and side lights are fitted with the Tormax LR.12 profiles, which are only 20mm square. Since the glass is providing the structural strength, the LR.12 is used to protect the door edges from impact damage, to carry air seals to protect the internal environment, and of particular importance to this project, to define the door edge for the sight impaired."

As is often the case, the real hero is the hidden mechanism which controls the door systems. The doors selected for Kimi Ora are driven by the fully integrated Tormax Win Drive 2201 sliding door operator, one of the comprehensive range of automatic door drives offered by Tormax. Built for quality, speed, reliability, longevity and above all safety, Tormax is the most cost-efficient across the life of the product.

GEORGE TAYLOR LTD

View of entry to school. door, floor, white
View of entry to school.

PO Box 38413, Lower Hutt 5045Phone (04) 568 6132www.tormax.com g.t.l@xtra.co.nz

Story by: Trendsideas

15 Mar, 2012
