Future perfect

Drafting the structural steel drawings for Green Square was the work of DKL Drafting.
An exterior view of the greensquare building. DKL architecture, building, commercial building, condominium, corporate headquarters, daylighting, daytime, facade, headquarters, landmark, metropolis, metropolitan area, sky, skyscraper, gray, blue

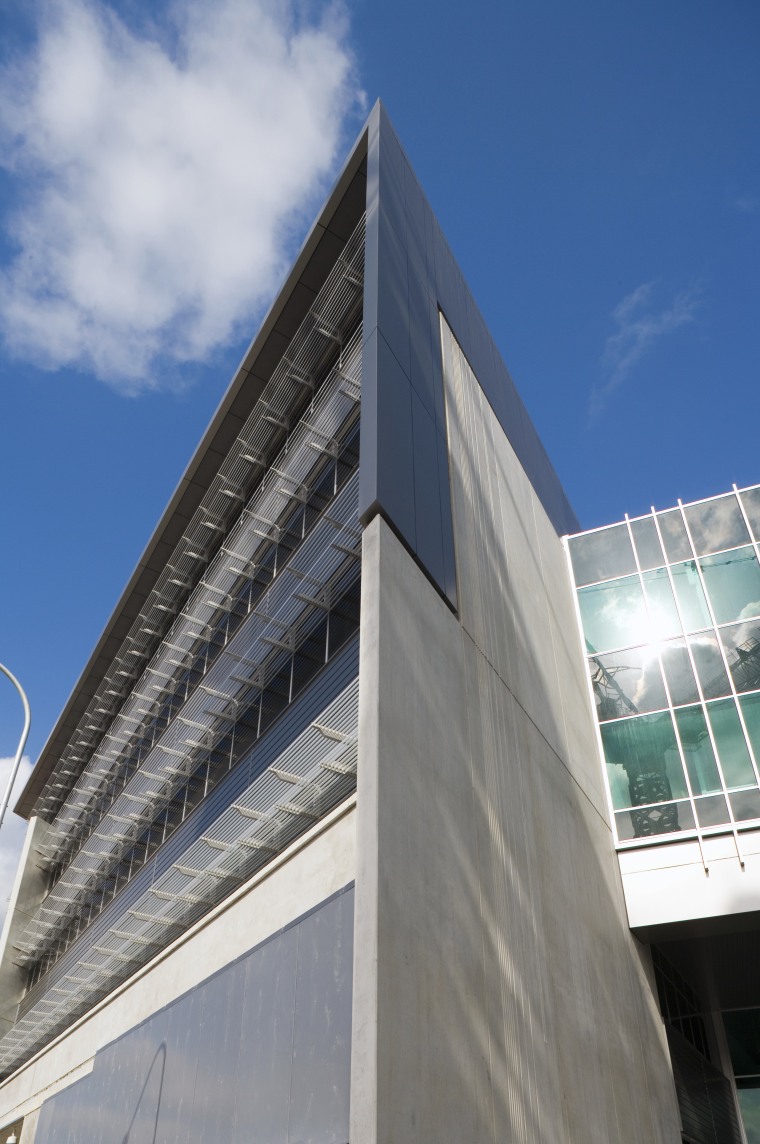

An exterior view of the greensquare building. DKL Drafting detailed drawings of the structural steel frames for fabricators

An exceptional building design may be attractive in many ways pleasing to the eye, comfortable to work in and environmentally friendly enough to be awarded a Green Star rating. While Green Square ticks all of these boxes, the planning of the structural steel detailing still needed to be sound. Leighton Properties employed DKL Drafting to take care of these details.

Started in 1984, DKL Drafting is a small company with a reliable reputation. Director Glen Neuendorf says that Green Square was a medium-sized job for DKL the company often takes on extensive drafting jobs.


An exterior view of the greensquare building. DKL architecture, building, commercial building, condominium, corporate headquarters, daylighting, daytime, facade, headquarters, landmark, metropolis, metropolitan area, sky, skyscraper, gray, blue
An exterior view of the greensquare building. DKL Drafting detailed drawings of the structural steel frames for fabricators

"We produced drawings of all the structural steel bones of the building for the steel fabricator to then erect. We liaised with the engineer, architect and builder to achieve the architect's desired design," he says.

At Green Square, this had to be executed in a limited time frame, but DKL Drafting managed to produce the drawings on time and to the satisfaction of the various parties involved.

An exterior view of the greensquare building. DKL architecture, building, commercial building, condominium, corporate headquarters, daylighting, daytime, facade, headquarters, landmark, metropolis, metropolitan area, sky, skyscraper, gray, blue
An exterior view of the greensquare building. DKL Drafting detailed drawings of the structural steel frames for fabricators

Contact DKL Drafting, 6 Thor Street, Victoria Point, Queensland 4165, phone (07) 3207 7769, fax (07) 3207 8700. Email: glen@dkldrafting.com.au.
